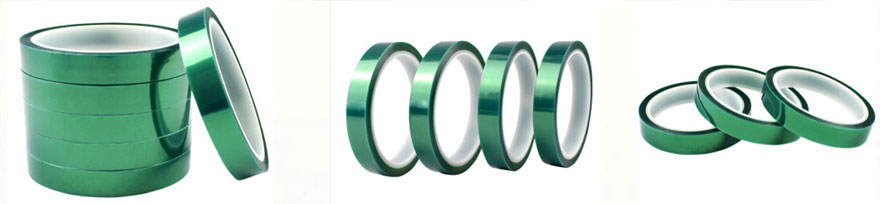

PET green high-temperature tape
PET green high-temperature tape is made of polyester film substrate PET coated with high-temperature resistant adhesive (silicone pressure-sensitive adhesive), which has the characteristics of high temperature resistance, good chemical solvent resistance, strong adhesion, softness, and no residual adhesive after tearing off. Suitable for surface protection of workpieces in high-temperature environments, shielding protection for powder coating, electroplating, baking, and high-temperature protection of other electronic components. Due to its excellent alkali resistance and high temperature resistance, PET green high-temperature tape is used in many electroplating shielding applications. Long term temperature resistance of 155, short-term temperature resistance of 200, with a duration of one hour of high-temperature baking. Within this specified time, the product can withstand high temperatures without warping or residue.
thickness（mm) | width（mm) | length（mm) | Inner diameter of cylinder core（mm) | ||||
specifications | deviation | specifications | deviation | specifications | deviation | specifications | deviation |
0.06-0.07 | ±0.005 | customizable | ±1 | customizable | Not lower than the indicated value | 76 | ±1 |
project | index | ||||||
appearance | green | ||||||
base material | PET | ||||||
Adhesive category | silicone rubber | ||||||
180° peel strength，g/25mm | 750-950 | ||||||
Initial adhesion force，# | 3 | ||||||
Holding Power，h | ≥48 | ||||||
Temperature resistance test (210 ℃, 0.5h) without detachment | After peeling, there is no residual adhesive left and the surface is not corroded | ||||||
